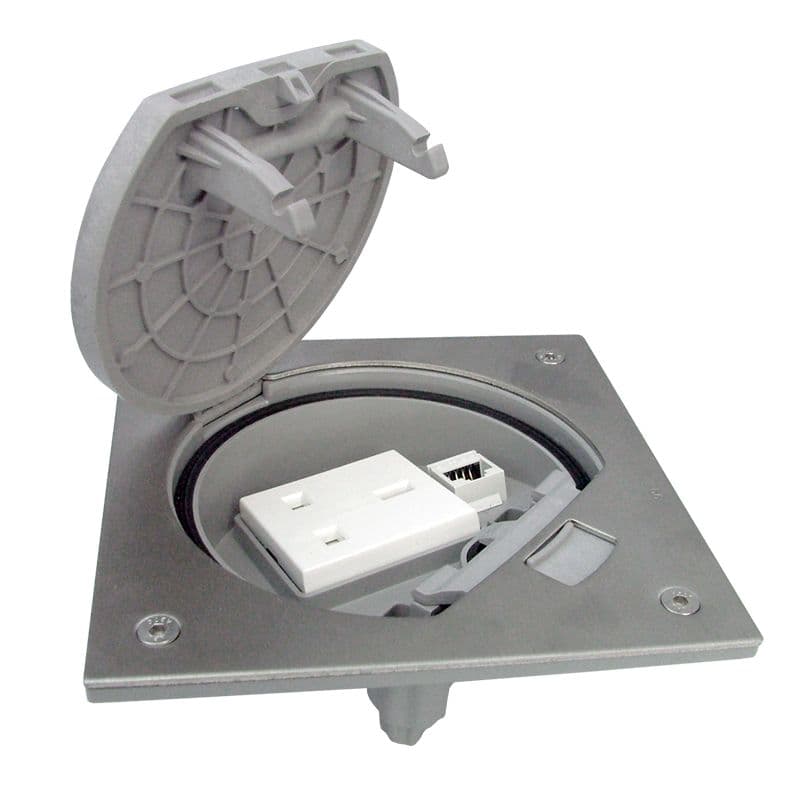

KSE15U/23/72 - Support Mechanism with Standard Lock + 1 RJ45 Data Port - Stainless Steel

Home > Waterproof Box
KSE15U/23/72 - Support Mechanism with Standard Lock + 1 RJ45 Data Port - Stainless Steel
KSE15U/23/72 - Support Mechanism with Standard Lock + 1 RJ45 Data Port - Stainless Steel KSE15U/23/72 - Support Mechanism with Standard Lock + 1 RJ45 Data Port - Stainless Steel KSE15U/23/72 - Support Mechanism with Standard Lock + 1 RJ45 Data Port - Stainless Steel KSE15U/23/72 - Support Mechanism with Standard Lock + 1 RJ45 Data Port - Stainless Steel
OUR PRICE:£83.60
Price Exclusive of VAT
  • description
  • Customer Reviews
Product Information
  • Stainless Steel support unit including 13A UK power socket (other socket options available)
  • Ideal for open or outdoor areas which require occasional power connection
  • Standard Lock Mechanism
  • 1 x RJ45 Data Port (Cat5e)
  • Safety cover - hinge opens to less than 90 degrees so lid cannot be left open accidently
  • Unit offers IP66 Level protection from the elements
  • Max loading 1000kg when lid is closed.
  • Max loading 170Kg when lid is open and connected, strong enoough to withstand pedestrians while protecting cables from pressure and stress
  • Includes protective film to protect box surface during installation.

Note:
To be used in conjuction with Base section KGE170TF/23 (raised floor) or KGE170/23 (screed floor)
Product Specification
Model: KSE15U/23/72
Dimensions: 130mm x 130mm
Power: 1 x Socket
Data: 1 x RJ45 Port (Cat5e)
Colour: Stainless Steel
Max Loading (closed): 1,000kg
Max Loading (open): 170kg
